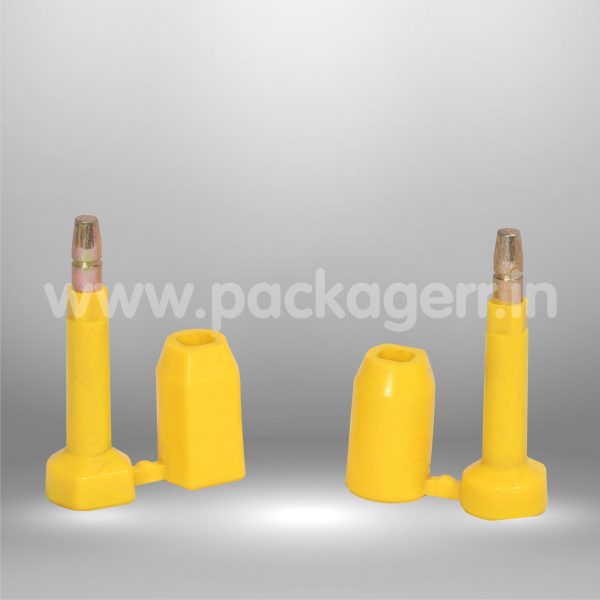

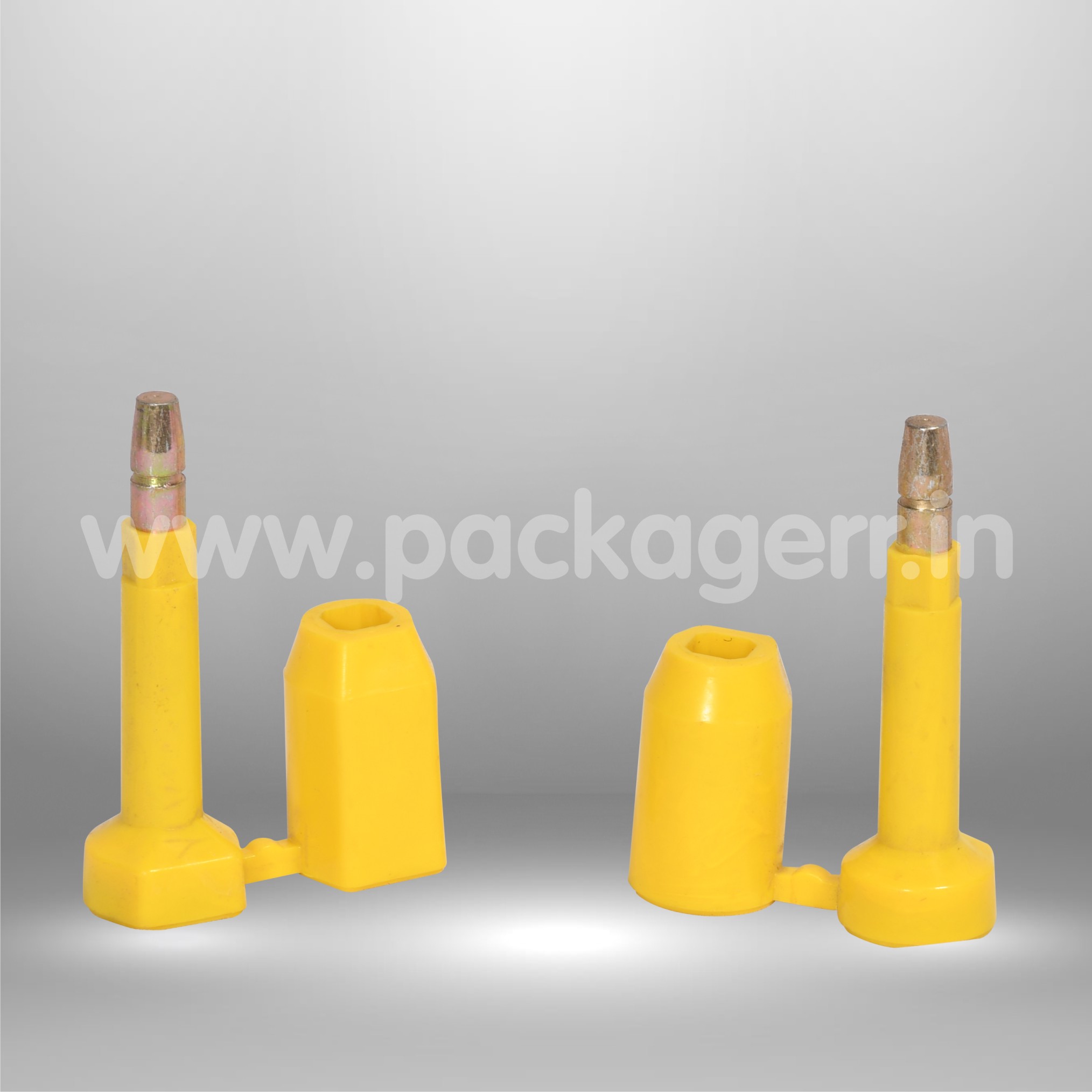

With Anti Spin mechanism
With Anti Spin mechanism
This Bolt seal is a high security bolt seal specifically designed to Secure high value Containers & cargo. The seal features a carbon steel body and ABS plastic coating for tamper evident visibility. To increase security, the body and bolt is laser etched with matching numbers. All the specifications can be modified or we can customise products as per customers requirements.
Technical Data
Recommended Applications
Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight,
Containers, Refineries, Warehouses, Cash bags,
Postbags, Valves, Hatches, Lockers.
Material
Body – Polypropylene
Insert – Spring Stainless Steel
Strap Width
59mm
Marking
Laser or Foil marking
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding
Available Operating Lengths
(L1) 25cm (overall 30cm)
(L2) 35cm (overall 40cm)
Tag Marking Dimensions
22mm x 45mm
Colours
Foil marked: red, blue, green, yellow, orange, black, white.
Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white.
Other colours may be available on request.
Packaging
Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) – 33.5cm x 24cm x 26.5cm : Â (L2) – 43.5cm x 24cm x 26.5cm Carton weight : (L1) – 4.7kg/carton : Â (L2) – 6.0kg/carton
Average Breaking Strength
40kg
Specifications
| Pin Length | 72.7 mm |
| Bolt Length: | 72mm |
| Bolt Diamater: | 7.6mm |
| Operating Length: | 42mm |
| Bush Length: | 33mm |
| Material | PP/ABS |
| Packing: | 100 Pcs/Carton |
| Weight: | 4.8 Kg/Carton |
Technical Data
Recommended Applications
Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight,
Containers, Refineries, Warehouses, Cash bags,
Postbags, Valves, Hatches, Lockers.
Marking
Laser or Foil marking
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding
Colours
Foil marked: red, blue, green, yellow, orange, black, white.
Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white.
Other colours may be available on request.
Material
Body – Polypropylene
Insert – Spring Stainless Steel
Available Operating Lengths
(L1) 25cm (overall 30cm)
(L2) 35cm (overall 40cm)
Packaging
Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) – 33.5cm x 24cm x 26.5cm : Â (L2) – 43.5cm x 24cm x 26.5cm Carton weight : (L1) – 4.7kg/carton : Â (L2) – 6.0kg/carton
Strap Width
59mm
Tag Marking Dimensions
22mm x 45mm
Average Breaking Strength
40kg
