Plastic Security Seals - 470 Metal lock

Plastic Security Seals - 470 Metal lock

Category

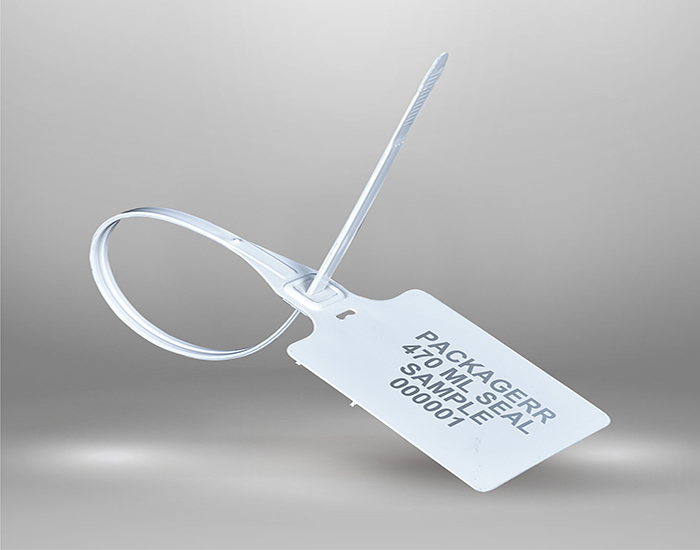

470 Metal lock plastic security seals are for Quick and safe application. Metal locking insert and possible tear-off tag for easy removal. The 470 Metal lock has a seal lock with metal insert which is durable and will give extra security, whilst the polypropylene body is long and flexible making it easier for use. The Design includes a hot melt welded cap to secure the insert to the body, which provides clear evidence of tampering if forced open or cut. All the specifications can be modified or we can customise products as per customers requirements.

Available Colours:

Technical Data

Recommended Applications

Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight,
Containers, Refineries, Warehouses, Cash bags,
Postbags, Valves, Hatches, Lockers.

Material

Body – Polypropylene
Insert – Spring Stainless Steel

Strap Width

59mm

Marking

Laser or Foil marking Consecutively numbered as standard Optional Customer name/logo Optional Laser Barcoding

Available Operating Lengths

(L1) 25cm (overall 30cm)
(L2) 35cm (overall 40cm)

Tag Marking Dimensions

22mm x 45mm

Colours

Foil marked: red, blue, green, yellow, orange, black, white.
Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white.
Other colours may be available on request.

Packaging

Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) – 33.5cm x 24cm x 26.5cm :   (L2) – 43.5cm x 24cm x 26.5cm Carton weight : (L1) – 4.7kg/carton :   (L2) – 6.0kg/carton

Average Breaking Strength

40kg

Specifications

Techincal Data
Recommended Application:Airlines, Cargo, Trailers, Containers, Rail Freight, Refineries, Warehouse, Cash Bags, Post Bags, Lockers.
Raw Material:Polypropylene, ABS, Biodegradable.
Available Operating Length364mm ( 470mm overall length)
Strap width7mm
Tag Marking Dimension65 X 106 mm
Breaking Strength40 Kg
MarkingConsecutively numbered as a standard
Optional Customer name/logo
Optional Laser Barcoding
Colours:Other colours may be available on request.
Packaging:Standard Packaging : 25 per mat and 1,000 seals/carton
Carton Dimensions : 48cm x 46cm x 58cm
Carton weight (gross) : 27kg/carton

Technical Data

Recommended Applications

Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight,
Containers, Refineries, Warehouses, Cash bags,
Postbags, Valves, Hatches, Lockers.

Marking

Laser or Foil marking
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding

Colours

Foil marked: red, blue, green, yellow, orange, black, white.
Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white.
Other colours may be available on request.

Material

Body – Polypropylene
Insert – Spring Stainless Steel

Available Operating Lengths

(L1) 25cm (overall 30cm)
(L2) 35cm (overall 40cm)

Packaging

Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) – 33.5cm x 24cm x 26.5cm :   (L2) – 43.5cm x 24cm x 26.5cm Carton weight : (L1) – 4.7kg/carton :   (L2) – 6.0kg/carton

Strap Width

59mm

Tag Marking Dimensions

22mm x 45mm

Average Breaking Strength

40kg
