Plastic Security Seals - 414 Metal lock
Plastic Security Seals - 414 Metal lock

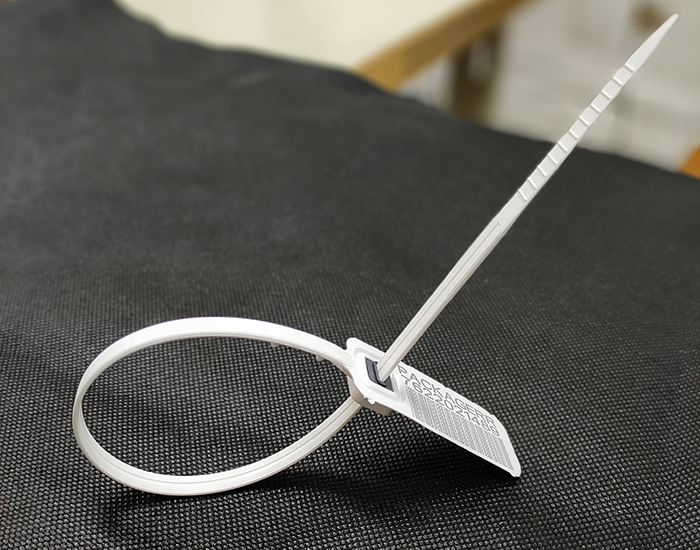

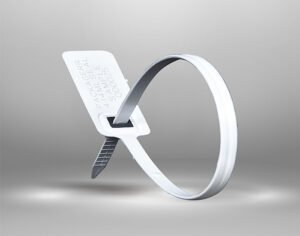

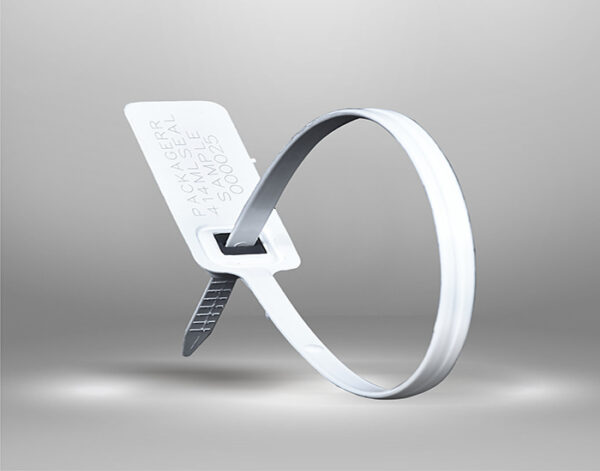

414 Metal lock is a Tamper-resistant self-locking mechanism seals with Metal insert pull-tight locking to the application.It is a Versatile indicative seal that is suitable for various securing and tagging purposes across industries. The design features like plastic wire to secure the metal part insert to the body. It is Made of Polypropylene Engineering Grade to Excellent readability by laser marking of Logo and sequential numbers. All the specifications can be modified or we can customise products as per customers requirements.
Technical Data
Recommended Applications
Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight,
Containers, Refineries, Warehouses, Cash bags,
Postbags, Valves, Hatches, Lockers.
Material
Body – Polypropylene
Insert – Spring Stainless Steel
Strap Width
59mm
Marking
Laser or Foil marking
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding
Available Operating Lengths
(L1) 25cm (overall 30cm)
(L2) 35cm (overall 40cm)
Tag Marking Dimensions
22mm x 45mm
Colours
Foil marked: red, blue, green, yellow, orange, black, white.
Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white.
Other colours may be available on request.
Packaging
Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) – 33.5cm x 24cm x 26.5cm : Â (L2) – 43.5cm x 24cm x 26.5cm Carton weight : (L1) – 4.7kg/carton : Â (L2) – 6.0kg/carton
Average Breaking Strength
40kg
Specifications
| Techincal Data | |
|---|---|
| Recommended Application: | Airlines, Cargo, Trailers, Containers, Rail Freight, Refineries, Warehouse, Cash Bags, Post Bags, Lockers. |
| Raw Material: | Polypropylene, ABS, Biodegradable. |
| Available Operating Length | 344mm ( 414mm overall length) |
| Strap width | 6.5 mm |
| Tag Marking Dimension | 25 x 70 mm |
| Breaking Strength | 40 Kg |
| Marking | Consecutively numbered as a standard Optional Customer name/logo Optional Laser Barcoding |
| Colours: | Other colours may be available on request. |
| Packaging: | Standard Packaging : 20 per mat and 1,000 seals/carton Carton Dimensions : 56cm x 43cm x 33cm Carton weight (gross) : 12kg/carton |
Technical Data
Recommended Applications
Airlines, Cargo, Trailers, Tankers, Rail & Sea Freight,
Containers, Refineries, Warehouses, Cash bags,
Postbags, Valves, Hatches, Lockers.
Marking
Laser or Foil marking
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding
Consecutively numbered as standard
Optional Customer name/logo
Optional Laser Barcoding
Colours
Foil marked: red, blue, green, yellow, orange, black, white.
Laser or Foil marked: pastel shades of pink, blue, green, yellow, peach, also black and white.
Other colours may be available on request.
Material
Body – Polypropylene
Insert – Spring Stainless Steel
Available Operating Lengths
(L1) 25cm (overall 30cm)
(L2) 35cm (overall 40cm)
Packaging
Standard Packaging : 10 per mat and 1,000 seals/carton Carton Dimensions : (L1) – 33.5cm x 24cm x 26.5cm : Â (L2) – 43.5cm x 24cm x 26.5cm Carton weight : (L1) – 4.7kg/carton : Â (L2) – 6.0kg/carton
Strap Width
59mm
Tag Marking Dimensions
22mm x 45mm
Average Breaking Strength
40kg
